Features

  • LF enhancer -3dB @ 38Hz to +7dB @ 63Hz Variable
  • Balanced line inputs (XLR & 6.35mm jack) and XLR link sockets
  • Speaker outputs on speakon sockets
  • Twin ten segment LED VU power output meters
  • Front panel LED illumination backlight with on / off switch
  • Active clip limiter (internally configurable off to max)
  • Fan cooled with proportional speed fan (twin fans for the MA2000)
  • Class AB Mosfet output stage
  • D.C, thermal and short circuit protection
  • Mains inrush current limiter and soft start

Specifications

  • Power Output (RMS) @ 1kHz
    MA1000 - 500 + 500 watts RMS into 4 ohms
    MA1300 - 650 + 650 watts RMS into 4 ohms
    MA2000 - 1000 + 1000 watts RMS into 4 ohms
    70% into 8 ohms
  • Frequency response: 20Hz – 25kHz +/-0.5dB
  • LF Enhancer: -3dB @ 38Hz to +7dB @ 63Hz Variable
  • Input sensitivity: 775mV / 0dBu
  • Input impedance: 10k + 10k (Balanced)
  • Channel Seperation: Better than 80dB
  • Signal to noise ratio: Better than 100dB
  • T.H.D. @ 1kHz rated power – <0.02%
  • Clip Limiter: Internal limiting (variable from off to max required SPL)
  • Thermal protection: 90 degrees C
  • D/C Protection: +/-32V
  • Short circuit protection and soft start on all models
  • Mains Input Power: 230V +/-10% 50-60Hz
  • Mains inrush limiting
  • Damping Factor: Better than 400
  • Slew Rate: 40V / uS

Options, Dimensions & Weights

- MA1000 - 500 + 500 Watts RMS into 4 ohms

  • Width: 483MM
  • Depth: 290MM
  • Height: 89MM
  • Weight: 13.7KG

- MA1300 - 650 + 650 Watts RMS into 4 ohms

  • Width: 483MM
  • Depth: 290MM
  • Height: 89MM
  • Weight: 14.5KG

- MA2000 - 1000 + 1000 Watts RMS into 4 ohms

  • Width: 483MM
  • Depth: 420MM
  • Height: 89MM
  • Weight: 24KG

See Amplifier Accessories for rack sleeves and 100v line transformers, if required.

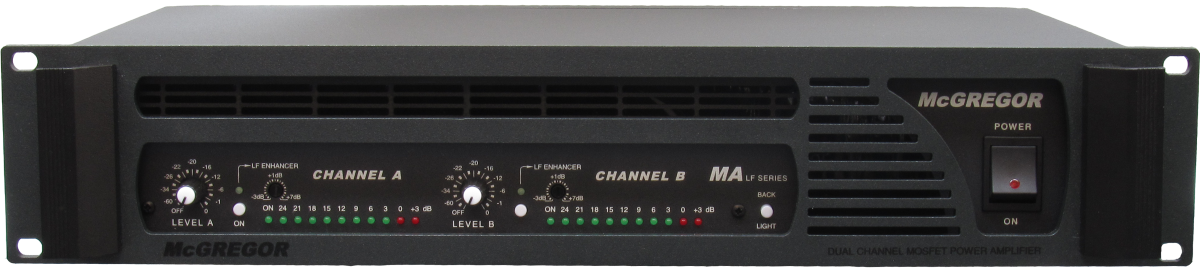

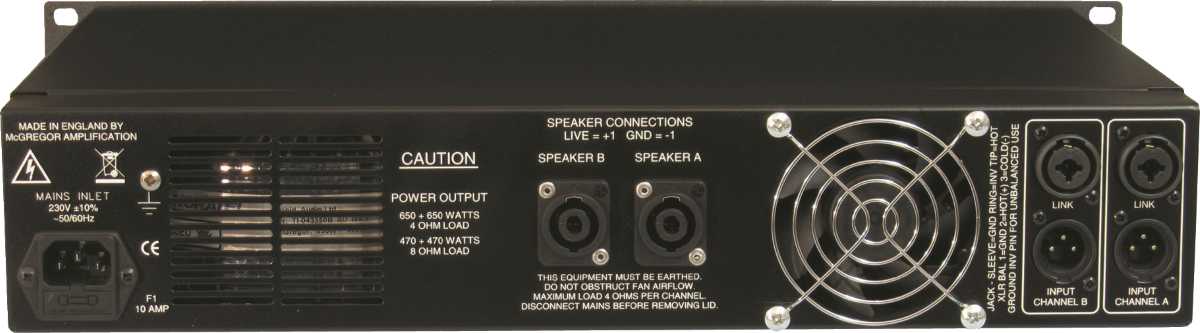

MA1000 & MA1300

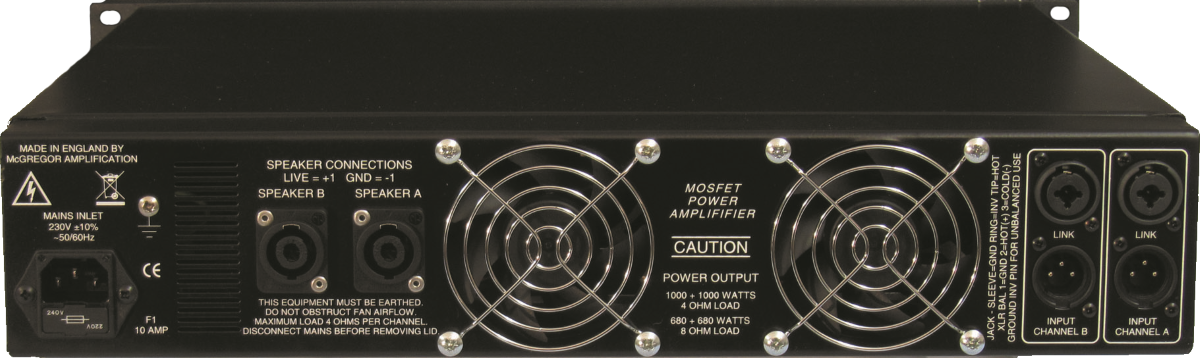

MA2000
