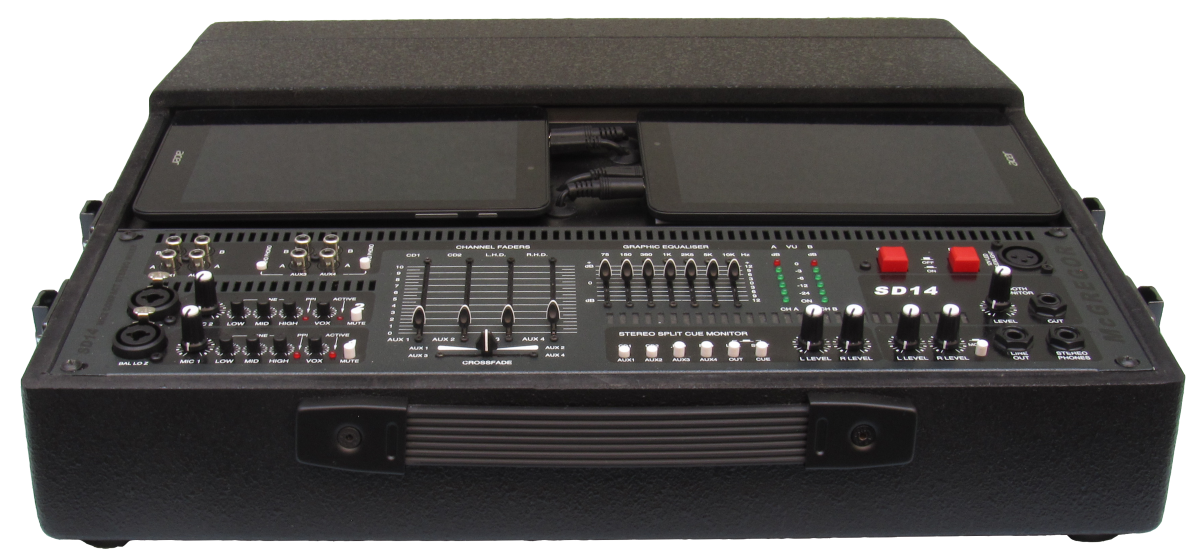

Features

  • Two comprehensive microphone channels with low Z mic inputs on balanced XLRs and unbalanced inputs on 6.35mm jacks
  • Each microphone channel has volume, bass, mid, treble and VOX level controls with mute switches plus PPI and VOX LED indicators
  • Both microphone channels have automatic voice override (VOX) features with level control and active LED indicators
  • Music section has four 60mm volume level faders, a fully assigned Xfader and seven band stereo graphic equalizer
  • Full headphone and VU monitoring with split cue facility
  • Booth and master output level controls with stereo/mono push switch
  • Console illumination with on/off switch is provided by seven medium intensity blue LEDs
  • Additional illumination can be achieved with the optional 12V XLR fitting LED flexilight
  • Covers available for mobile use (see Amplifier Accessories)

Specifications

  • Power Output (RMS) @ 1kHz
    SD14 500 - 250 + 250 watts RMS into 4 ohms
    SD14 1000 - 500 + 500 watts RMS into 4 ohms
    SD14 1300 - 650 + 650 watts RMS into 4 ohms
    70% into 8 ohms
  • Microphone inputs: Balanced or unbalanced 3k3 - 5mV
  • Line inputs: Unbalanced >22k - 200mV
  • Line output: Unbalanced <10k - 775mV (0dB)
  • Headroom: +22dB (PPIā€™s active @ +19dB)
  • Bass EQ: +/- 15dB @ 50Hz - Shelved
  • Treble EQ: +/- 15dB @ 12kHz - Shelved
  • Graphic Equaliser: +/- 15dB - All bands
  • Frequency response: 20Hz ā€“ 25kHz +/-0.5dB
  • T.H.D. @ 1kHz rated power ā€“ <0.02%
  • Signal to noise ratio: Better than 100dB
  • Channel Separation: Better than 80dB
  • Clip Limiter: Internal limiting (off to max required SPL)
  • Input sensitivity: 775mV / 0dBu
  • Input impedance: 10k + 10k
  • Damping Factor: Better than 400
  • Slew Rate: 40V / uS
  • Thermal protection: 90 degrees C
  • D/C Protection: +/-32V
  • Short circuit protection and soft start on all models
  • Mains inrush limiting: 500 + 500 watts (SD14 1000 C and above)
  • Mains Input Power: 230V +/-10% 50-60Hz

Options, Dimensions & Weights

- SD14 500 - 250 + 250 Watts RMS into 4 ohms

  • Width: 530MM
  • Depth: 478MM
  • Height: 148MM
  • Weight: 16KG

- SD14 1000 - 500 + 500 Watts RMS into 4 ohms

  • Width: 530MM
  • Depth: 478MM
  • Height: 148MM
  • Weight: 17KG

- SD14 1300 - 650 + 650 Watts RMS into 4 ohms

  • Width: 530MM
  • Depth: 478MM
  • Height: 148MM
  • Weight: 18KG

See Amplifier Accessories for covers, if required.
