Features

  • Three microphone channels and three stereo line level channels - Both with separate two band EQ
  • All microphone inputs are balanced or unbalanced on combi XLR/Jack sockets

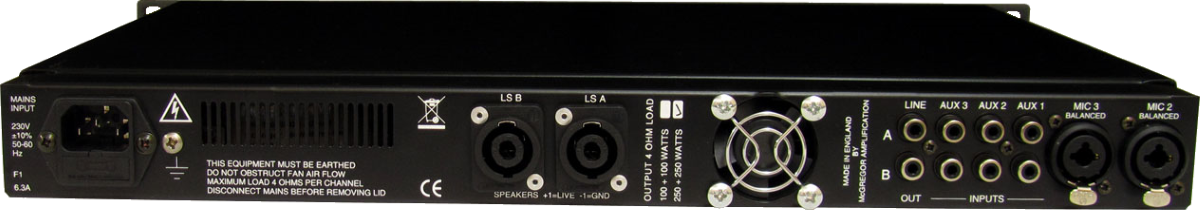

  • Microphone 1 input is mounted on the front panel, microphone 2 and 3 inputs are mounted on the rear panel
  • Microphone channels feature volume 1-2-3, bass and treble controls with PPI indicator
  • Aux 1-3 inputs and line output connections on rear mounted twin phono (RCA) sockets
  • Speaker outputs on rear mounted speakon sockets
  • Twin five segment LED VU power output meters
  • Active clip limiter (internally configurable off to max)
  • Fan cooled with proportional speed fan
  • Externally adjustable voice override level (VOX) with vox active led indicator
    (Operates with any microphone to automatically reduce the music level when selected)
  • Three aux input volume controls with bass and treble EQ
  • Overall master output volume controls

Specifications

  • Power Output (RMS) @ 1kHz
    BGS200 - 100 + 100 watts RMS into 4 ohms
    BGS500 - 250 + 250 watts RMS into 4 ohms
    70% into 8 ohms
  • Microphone inputs: Balanced or unbalanced 3k3 - 5mV
  • Line level inputs: Unbalanced >22k - 200mV
  • Line output: Unbalanced <10k - 775mV (0dB)
  • Headroom: +22dB (PPI’s active @ +19dB)
  • Bass EQ: +/- 15dB @ 50Hz - Shelved
  • Treble EQ: +/- 15dB @ 12kHz - Shelved
  • Frequency response: 20Hz – 25kHz +/-0.5dB
  • D/C Protection: +/-32V
  • Signal to noise ratio: Better than 100dB
  • Clip Limiter: Active clip limiting (Internal variable threshold)
  • T.H.D. @ 1kHz rated power – <0.02%
  • Damping Factor: Better than 400
  • Slew Rate: 40V / uS
  • Mains Input Power: 230V +/-10% 50-60Hz

Options, Dimensions & Weights

- BGS200 - 100 + 100 Watts RMS into 4 ohms

  • Width: 483MM
  • Depth: 300MM
  • Height: 44MM
  • Weight: 6.8KG

- BGS500 - 250 + 250 Watts RMS into 4 ohms

  • Width: 483MM
  • Depth: 300MM
  • Height: 44MM
  • Weight: 8.2KG

See Amplifier Accessories for rack sleeves and 100v line transformers, if required.
