• Two microphone channels and two auxiliary line level channels
  • The microphone channel has volume 1, volume 2 and shared bass, treble, voice override, vox active and peak programme LED indicators

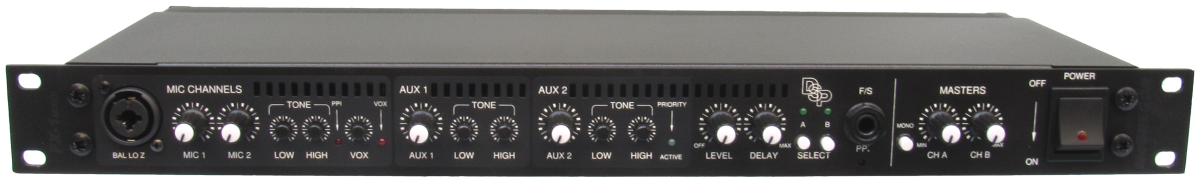

  • Microphone 1 input, balanced or unbalanced (XLR/Jack socket) accessible via the front panel

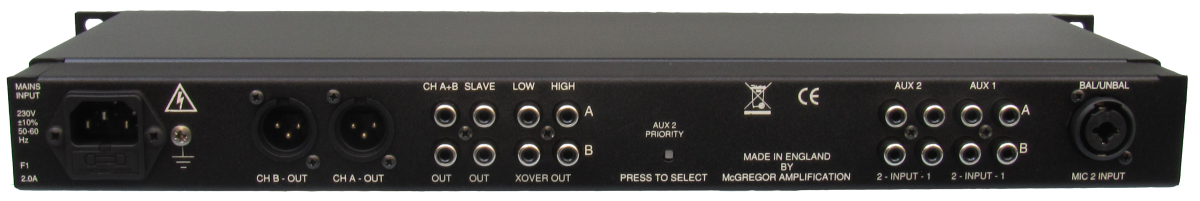

  • Microphone 2 input, balanced or unbalanced (XLR/Jack socket) mounted on the rear panel
  • Two stereo auxiliary line input channels with twin stereo phono (RCA) sockets on each channel providing additional line input options
  • Each auxiliary channel has separate volume, bass and treble controls
  • Auxiliary 2 channel has user selectable priority over auxiliary 1 and is selectable via the rear mounted push switch
    A status indicator LED is fitted to the front panel to show when selected
  • A digital signal processor (DSP) provides both reverb and echo with adjustable level, variable delay and footswitch on/off via a 6.3mm jack
    LEDs provide a visual display of the programme selected and a PPI LED shows the onset of any DSP clipping
  • Outputs can be pre or post the two master volume controls and a stereo / mono switch is fitted
  • RCA sockets enable pre or post volume control selection
  • XLR output sockets are provided should a balanced line output be required
  • Active crossover at 150Hz, 12dB/oct on phono (RCA) sockets provides Hi and Lo outputs


  • Microphone inputs: Balanced or unbalanced 3k3 - 5mV
  • Line level inputs: Unbalanced >22k - 200mV
  • Slave line output: Unbalanced <10k - 775mV (0dB)
  • Headroom: +22dB (PPI’s active @ +19dB)
  • Bass EQ: +/- 15dB @ 50Hz - Shelved
  • Treble EQ: +/- 15dB @ 12kHz - Shelved
  • Frequency response: 20Hz – 25kHz +/-0.5dB
  • Signal to noise ratio: Better than 100dB
  • Mains Input Power: 230V +/-10% 50-60Hz

Options, Dimensions & Weights

- FX1 - 1U Mixer & Crossover

  • Width: 483MM
  • Depth: 200MM
  • Height: 44MM
  • Weight: 2.7KG

See Amplifier Accessories for rack sleeves, if required.
